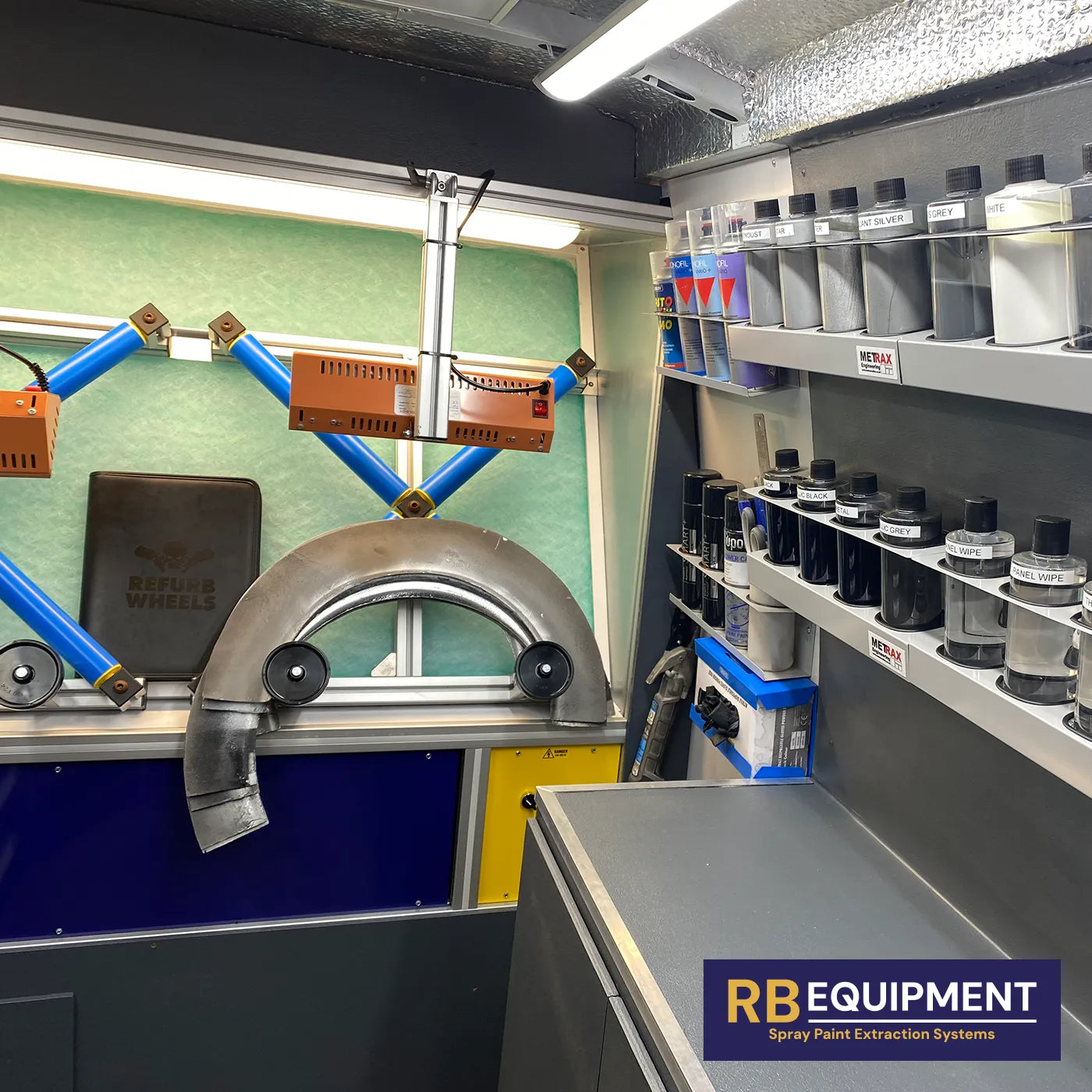

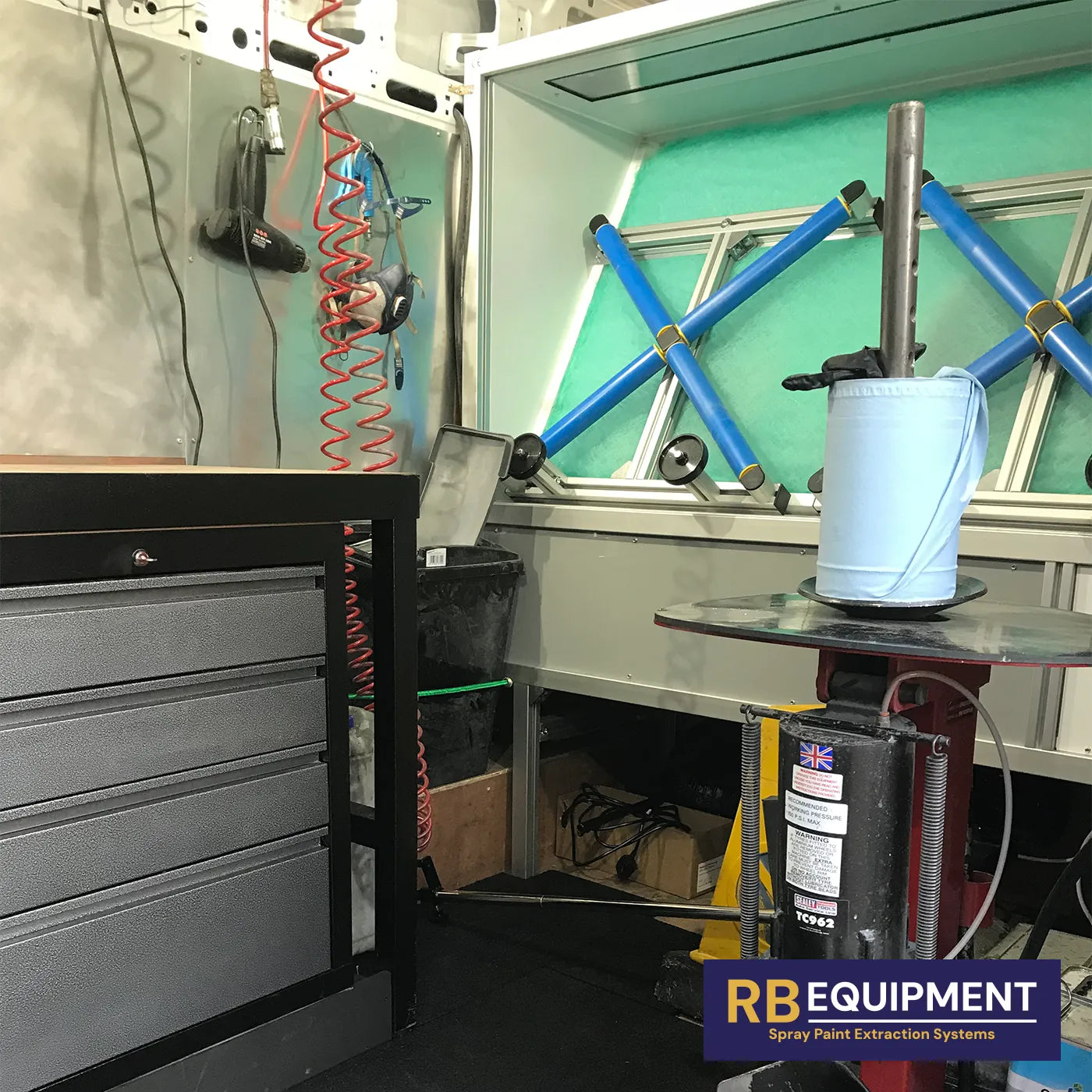

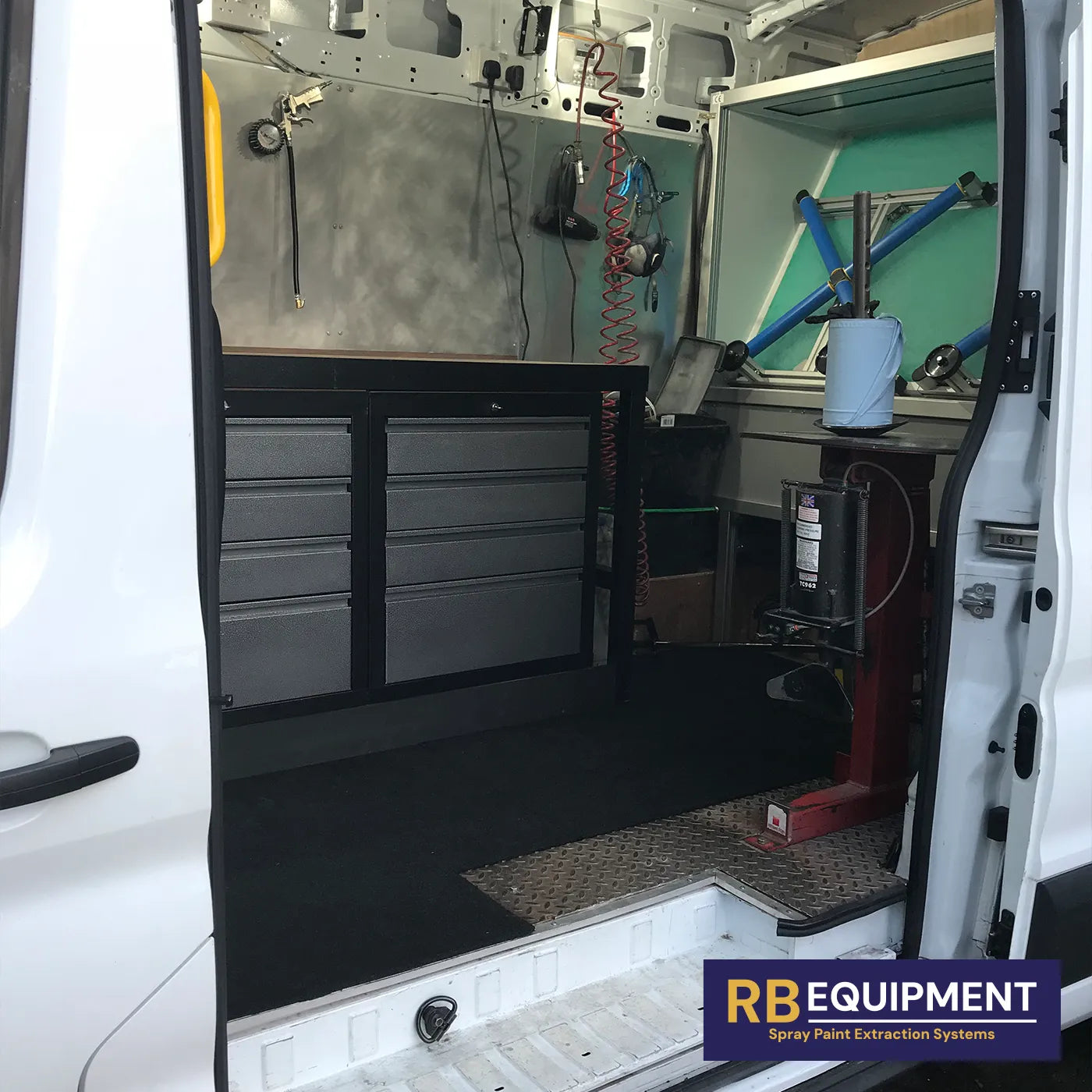

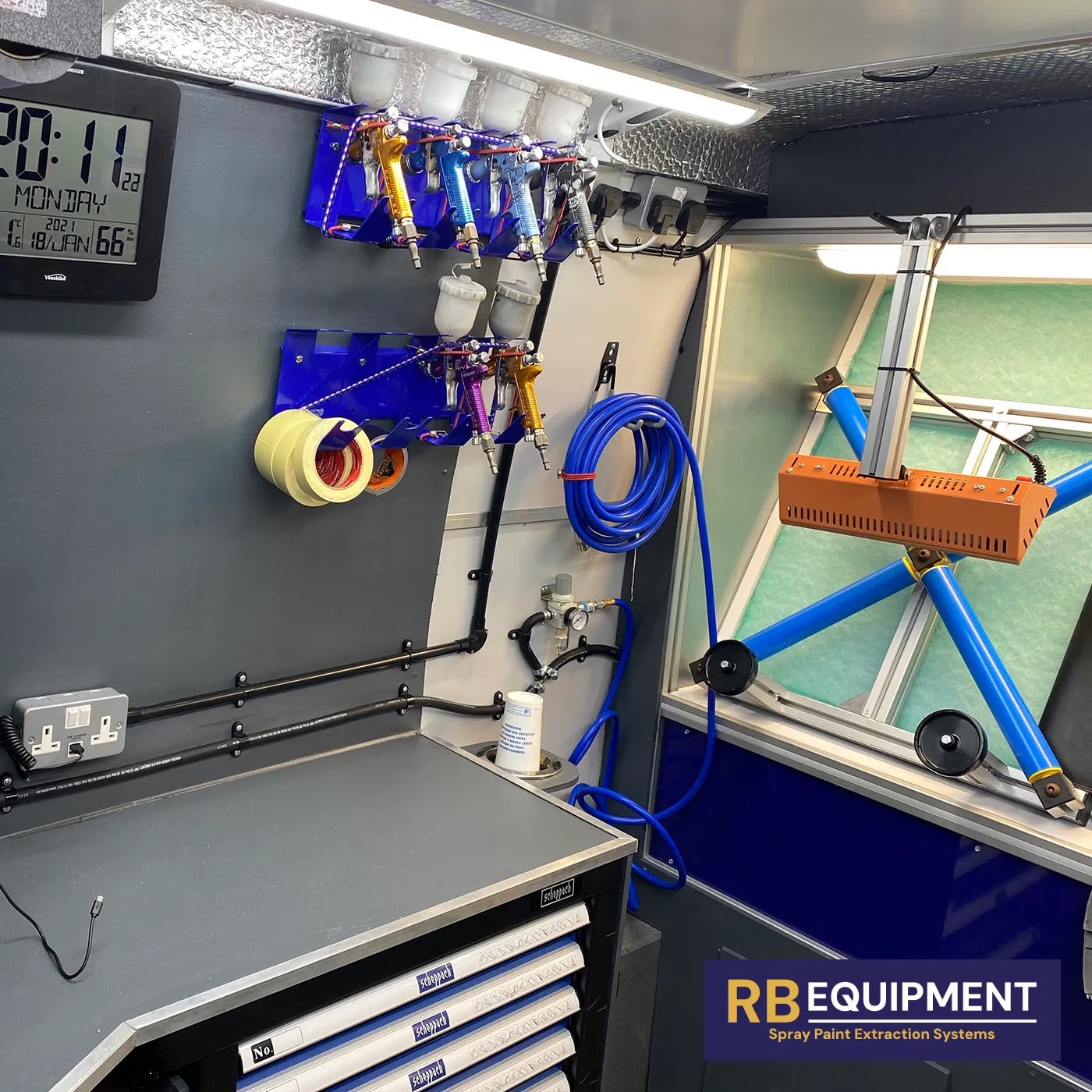

Space is at a premium in a working van. Our Double Van booth is 1600mm wide to fit across most van widths, and 650mm deep to intrude as little as possible. Legs are inset to miss wheel arches and can even be shortened if needed!

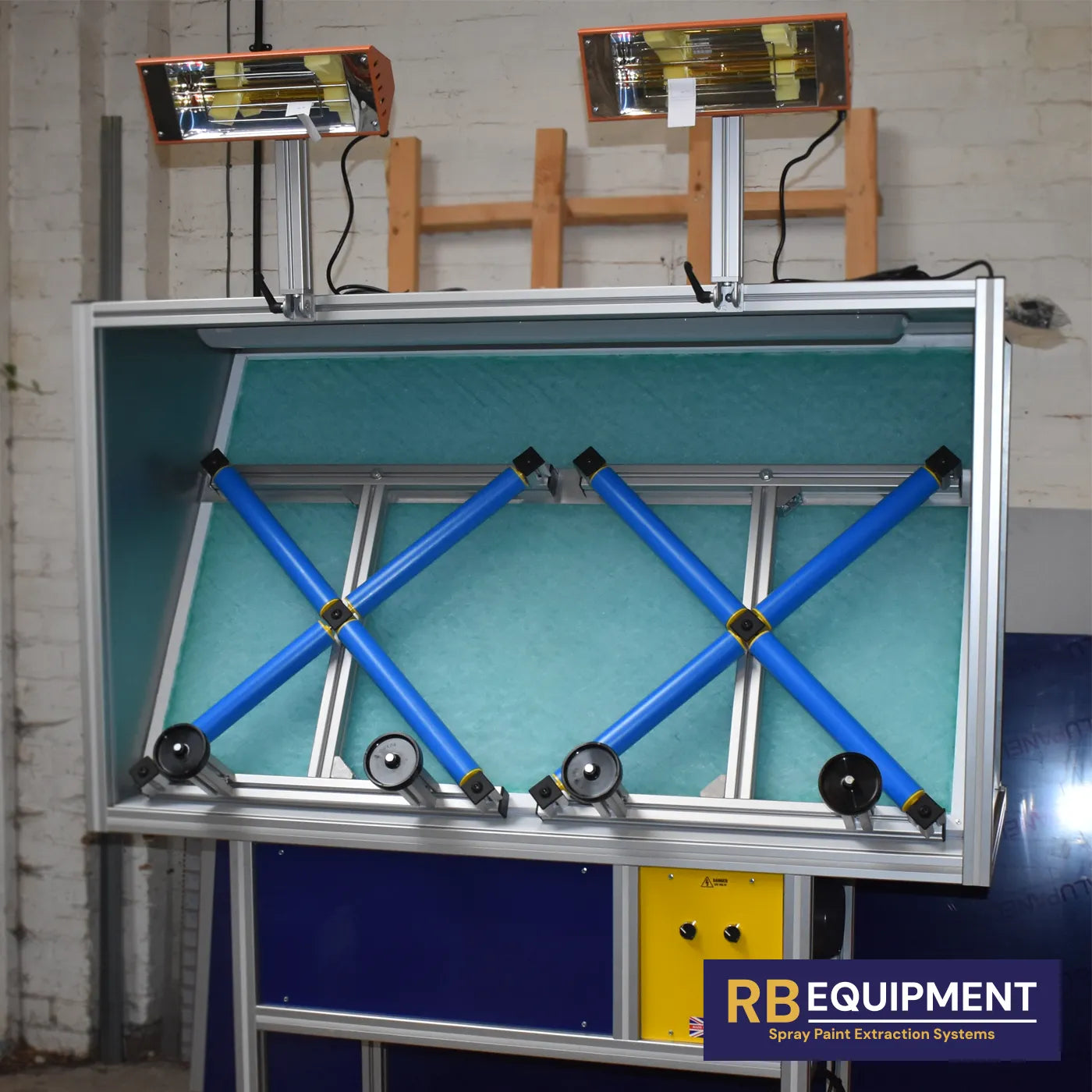

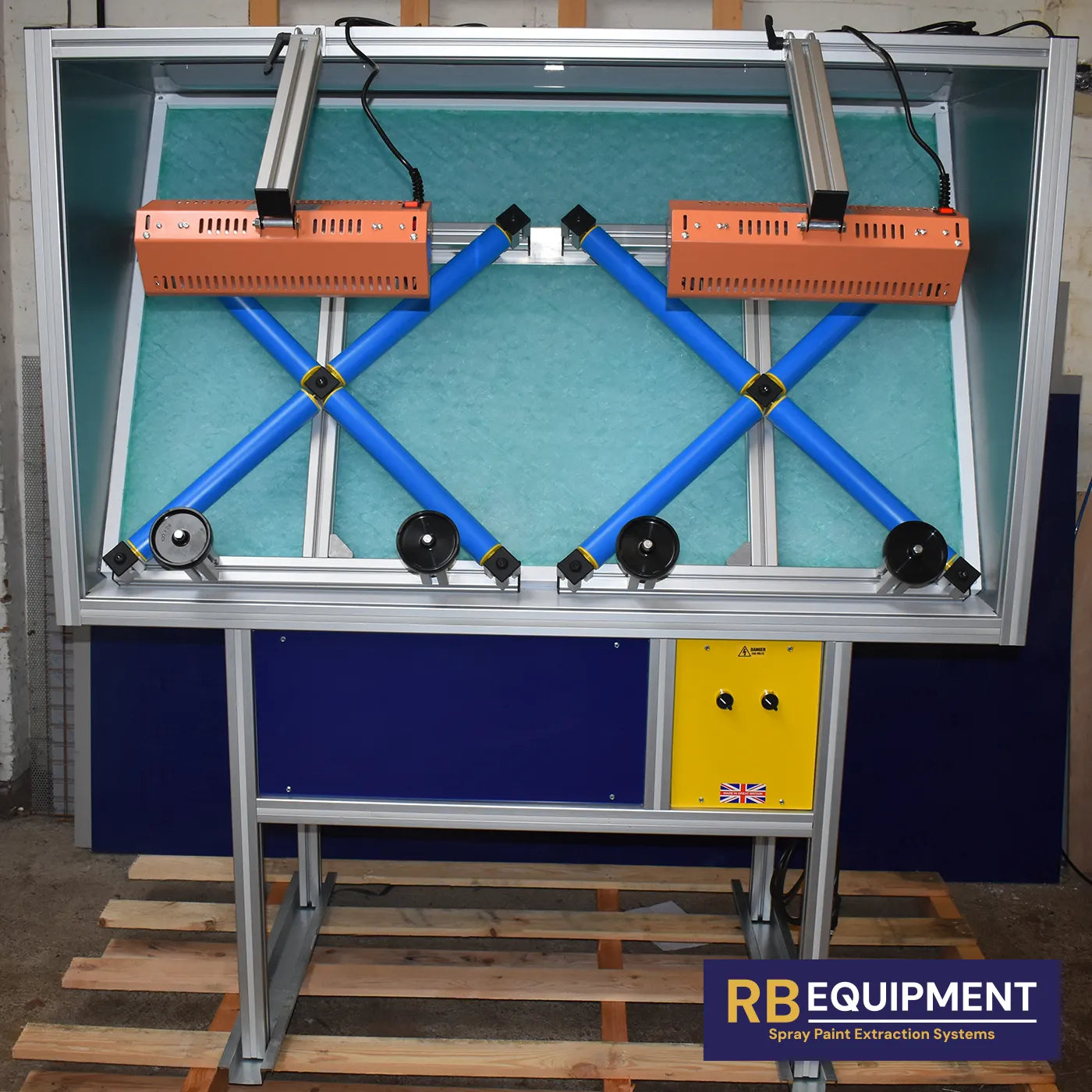

Our Double Alloy Wheel Booths have quiet, high performance fans, standard turntables, integrated work light, dual layer filtration and front panel mounted controls. The booths are made to the highest quality standards and combine excellent performance with robust construction to offer the highest possible value for money and meet all relevant Health & Safety and Environmental Protection legislation. Looking for a Single Alloy Wheel Booth? or Looking for a Workshop Use Spray Booth?
Dimensions (W x D x H)
1600 x 650 x 1700 mm
Airflow
2600 m3/hr
Power
0.55kW 240V single phase
Running current
4.0A
Filter area
1.4m2

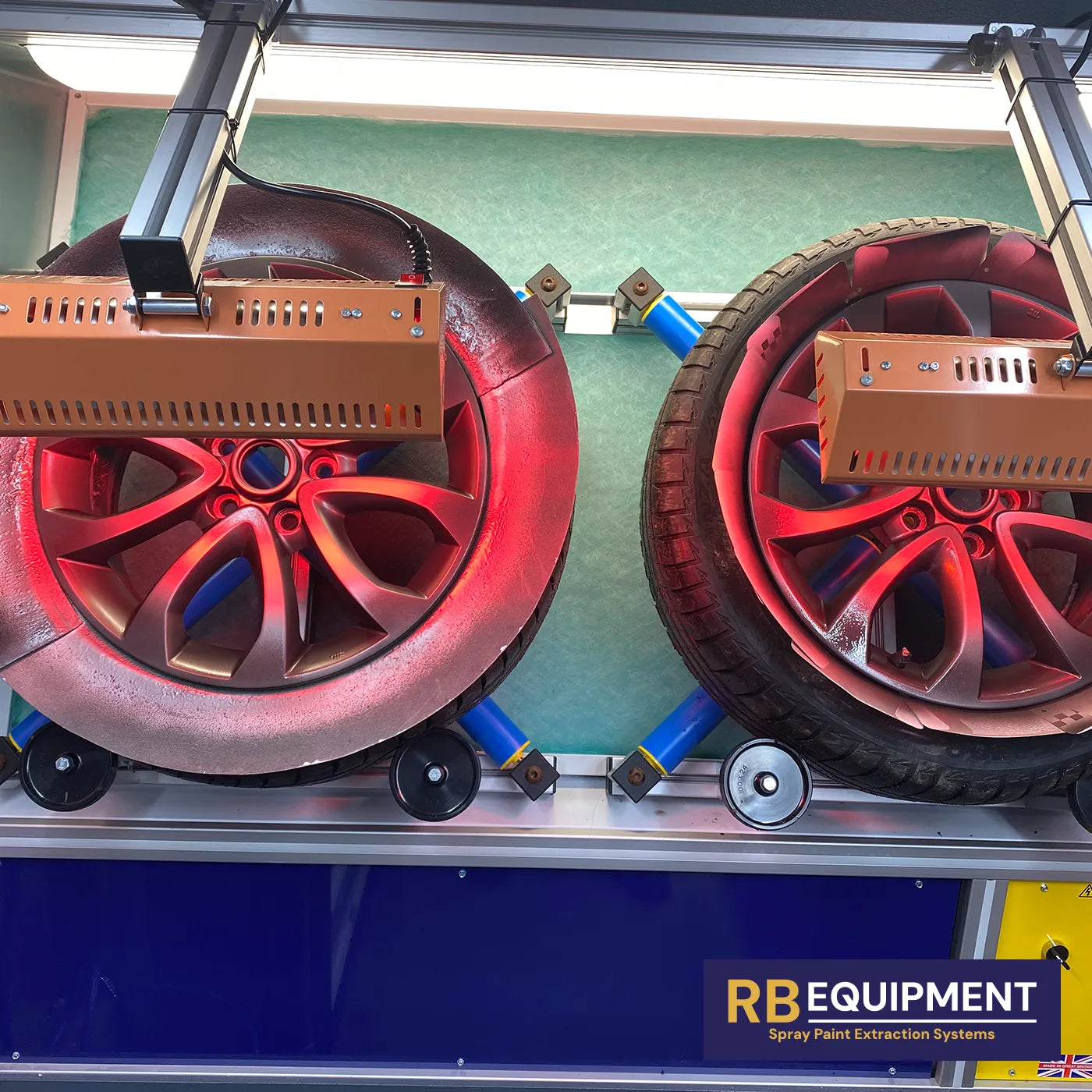

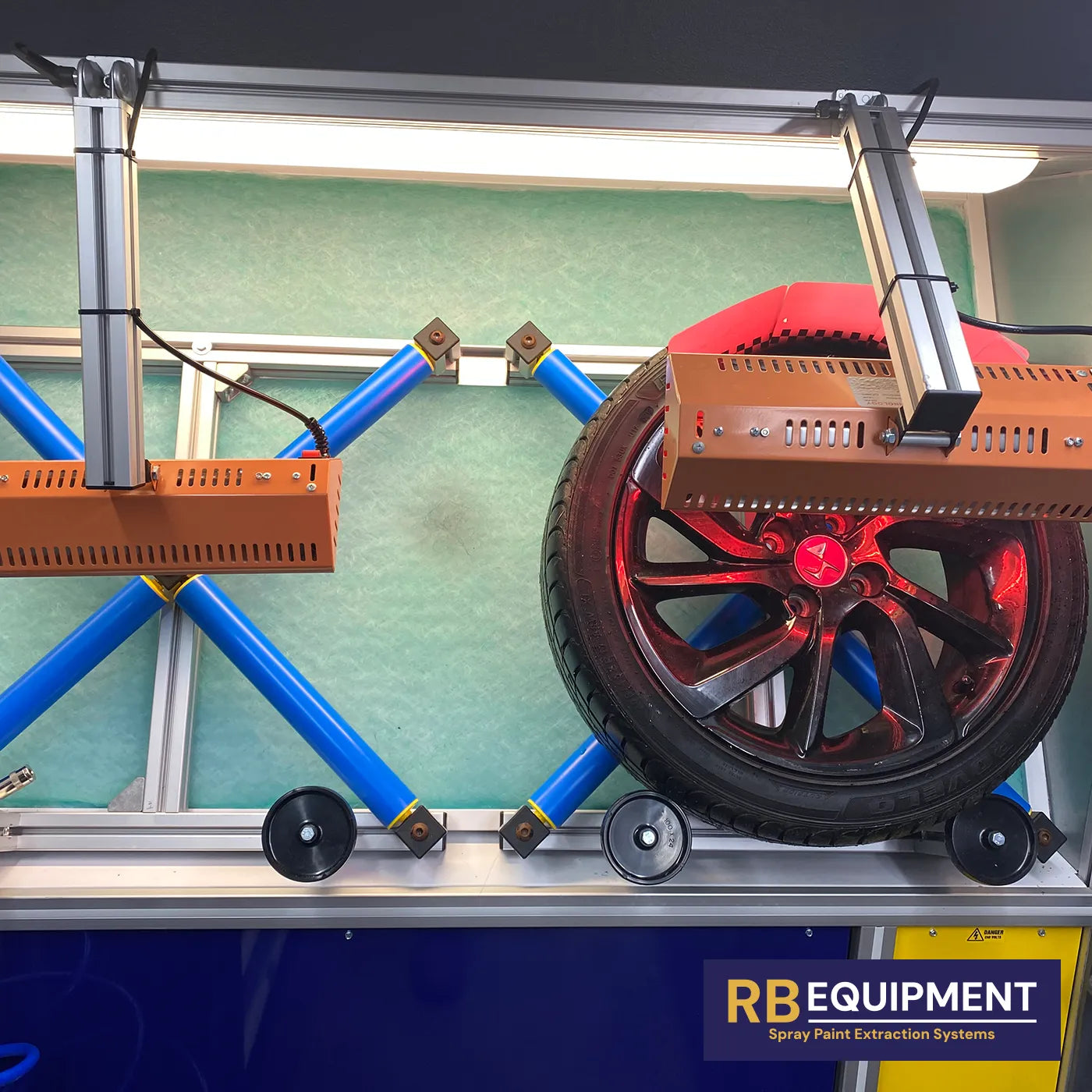

Turntable
Includes 2
Construction
Manufactured from an anodised aluminium frame with galvanised and pre-painted steel body panels. Inclined wheel turntables included as standard.
Fan systems
Quiet running, direct driven, double inlet, centrifugal fan with single phase motor mounted outside the airflow.
Lighting & controls
Single LED batten mounted above transparent panel in booth ceiling.
Light and Fan switches mounted on front panel. 3m power lead plugs into standard 3-pin 240V wall socket.
Filtration
Dual Layer filtration to meet Environmental Health standards.
